How to wire a Burkert type 6011 solenoid

Collapse
This is a sticky topic.
X
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • How to wire a Burkert type 6011 solenoid

    Due to a lack of references on the internet, most people cringe at the idea of wiring their own CO2 solenoids. I hope to show with 50+ pictures that wiring your own solenoid isn't something to be scared of. The shop where I ordered this solenoid offered to wire it for me for the cost of $20. Save yourself the money and DIY!

    Here is how the package came today:

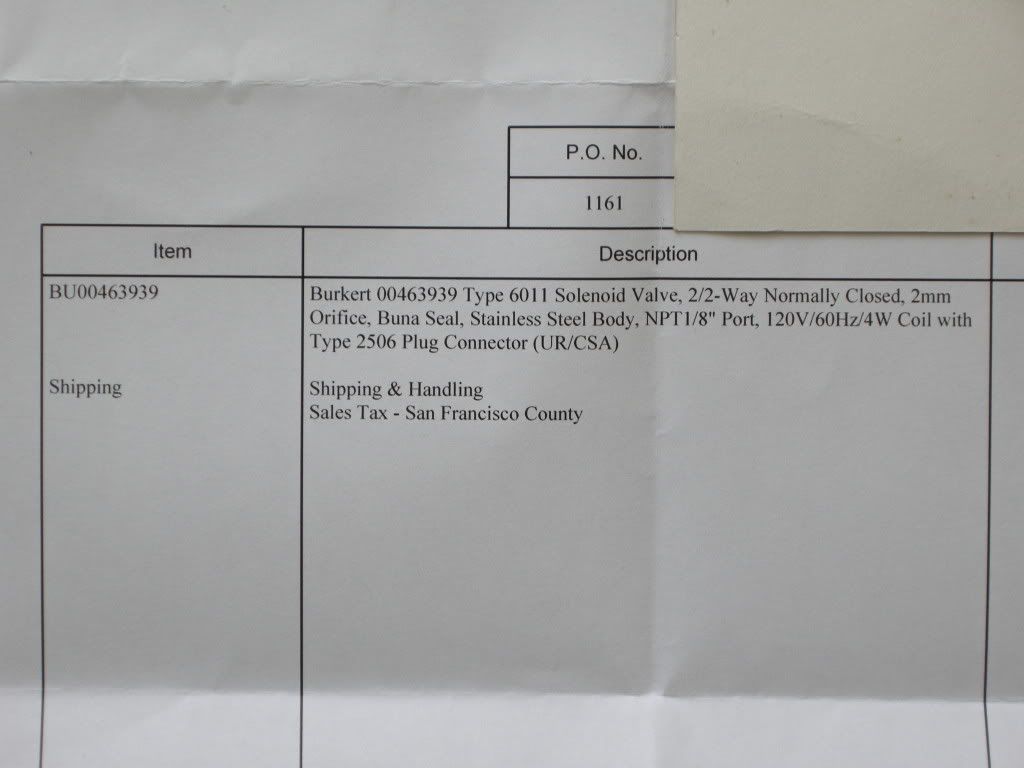

    The packing slip w/ part numbers (MMMMM BUNA-N):


    Aside from the box that I will show you with the solenoid, this type 2506 DIN connector came wrapped up in its own plastic bag. This is the thing we will wire and plug into the solenoid:

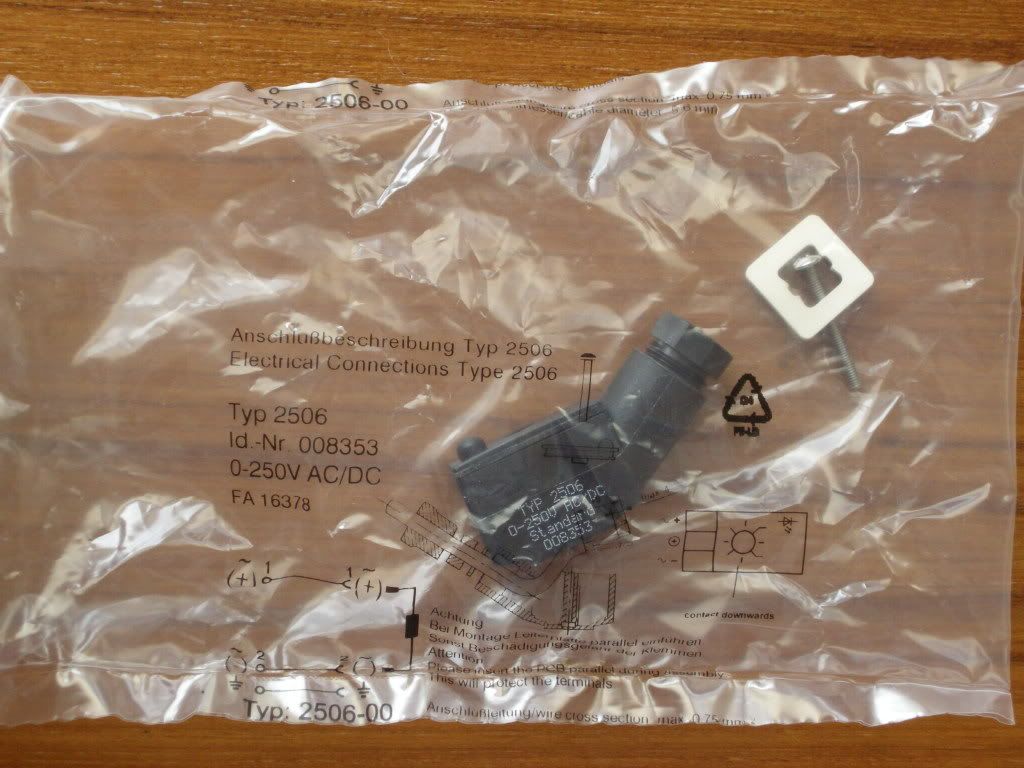

    This is what is in the plastic type 2506 DIN bag:

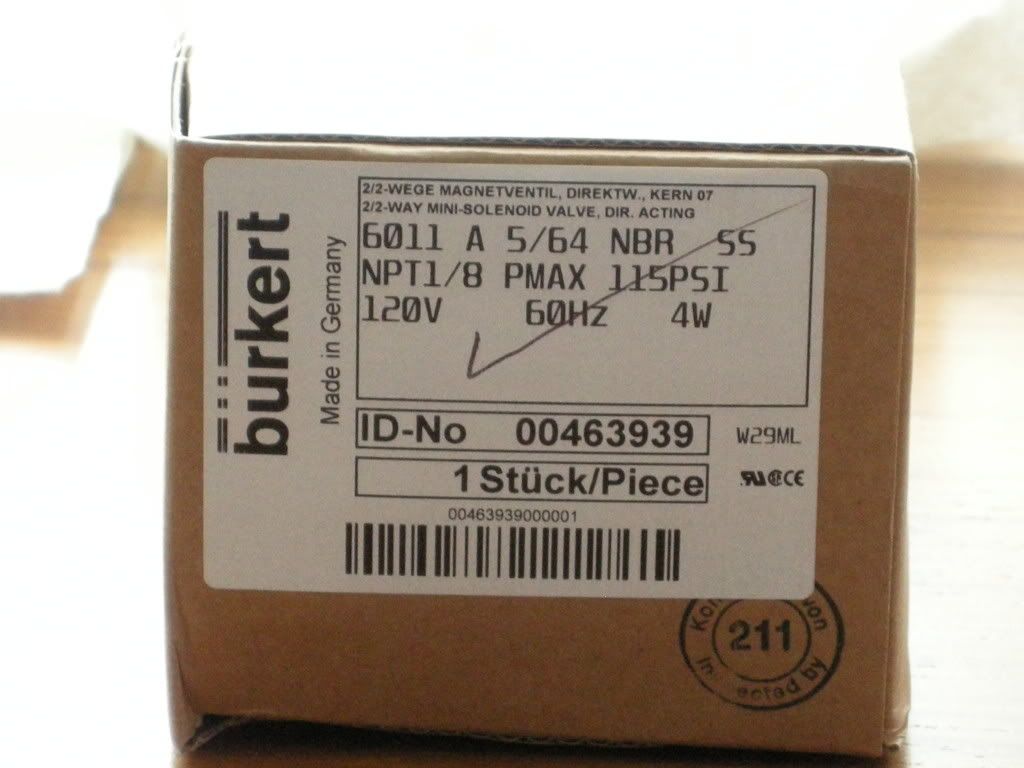

    Here is the way the actual solenoid comes:
